Brand Name : KINDLO
Model Number : KINDLO-PJ55-4K
Certification : 3C,FCC,CE,GS,RoHS
Place of Origin : Guangzhou,China
MOQ : Negotiation
Price : Negotiation
Payment Terms : T/T
Supply Ability : 1500,pieces/week
Delivery Time : 7-15days(Negotiated)
Packaging Details : Plastic packaging > foam > export standard carton
Panel type : TFT-LCD
System : Android and windows
Resolution : 1920 * 1080 or 3840 * 2160
Brightness : ≥350cd/ m2
Contrast : ≥ 5000: 1
Lifetime : > 60000 hours
Touch response speed : 8ms
Application : Conference room, exhibition hall, monitoring room, Hotel, etc
Pixel Pitch : 0.53mm*0.53mm
Display area : 1018.08 x 572.67mm

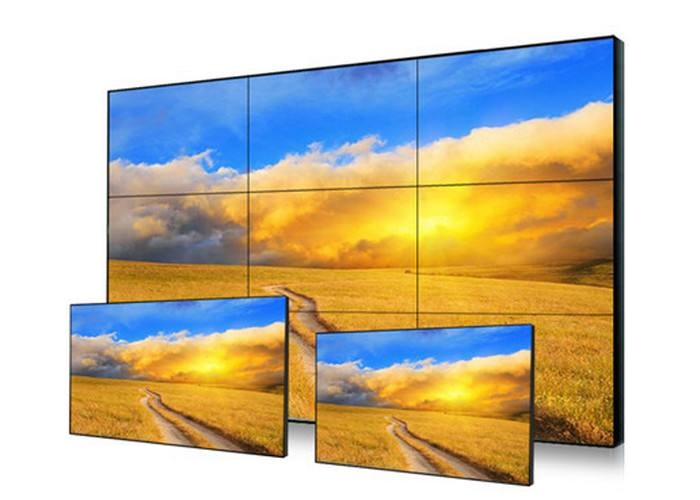

55" Mounted 3x3 Processor Advertising Touch Screen Display LCD Video Wall
KINDLO-PJ55-4K
Production Detail
Model No. | KINDLO-PJ55-4K |
Panel Type | 55"DID LED Panel(Diagonal:1168mm) |
Physical Resolution | 1920(H)X1080(V) |
Pixel Pitch | 0.53mmX0.53mm |
Screen Ratio | 16:9 |
Physical Patchwork | 3.5mm(Level),3.5mm(Vertical) |
Response Time | <=8ms |
High Brightness | 550cd/m2 |
Contrast | 4000:1 |
Viewing Angle | 178°(H)/178°(V) |
Display Color | 8Bits, 16.7M |
Surface | Anti-glare |
Refresh Rate | 60Hz |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Video input | CVBS(BNC) x 2, S-VIDEO(Y/C)x1 |
Computer signal input | VGA x1 |
Digital input | DVIx1, HDMIX1, 1080P(1920x1080)Backward Compatible |
HD input | YPbPrX1, 1080P(1920X1080)Backward Compatible |
Video Output | CVBS(BNC)x2 |
Large Screen Splicing Module | Built-in, D-Sub15in X1, D-Sub15Out X1 |
Intelligent Cooling System | Intelligent temperature control fan, fan self-test function, save energy consumption, reduce noise, reduce temperature, improve reliability |
System Control Method | Chinese and English language switching, contrast, brightness, sharpness, color saturation, hue, signal switching, source browsing, color temperature adjustment, reproduction rate switching, running status display |
Engineering Software | Customized |
Operation Method | Wire control, remote control |
Bus Control | 12C |
Video Format | PAL,NTSC |
Wide Voltage Design | 100~240V AC |
Power Consumption | 165W |
Frame Size | Up:2.3mm ; Down:1.2mm; Left:2.3mm; Right:1.2mm |
Dimensions | 1021.98mm x 576.57mm(W x H) |
Display Area Size | 1018.08mm x 572.67mm(W x H) |
Mounting Holes | 600mm x 400mm(W x H) |
Installation Method | Hanger (optional),Bracket (optional),Cabinet (optional) |
Weight (including packaging) | About 12KG |
Storage Temperature | -20°C~60°C |
Operating Temperature | 0°C~50°C |
Working Humidity | 10%~90% |
Shell Material | Metal shell, anti-static, anti-magnetic field, anti-strong electric field interference |
Quality Standard | 3C |
Why Choose Us
Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the first professional manufacturer of commercial display equipment.
We have more than 20 years production experience and over 10 years export trade.All of our product have strict inspection and passed
the CE, CCC, RoHS, FC and IEC certifications to insure quality. We owe 2000 square meters large factory. We have won the big support
from the customers through the efforts of more than 100 colleagues.
We have professional technical personnel, rich operational experience and excellent technical strength etc. Professional designers team
make sure to meet customers’ requirements. Until now our products and services have recognized by customers.
FAQ
![]() |
